Digital Scale Controller Comparison Chart

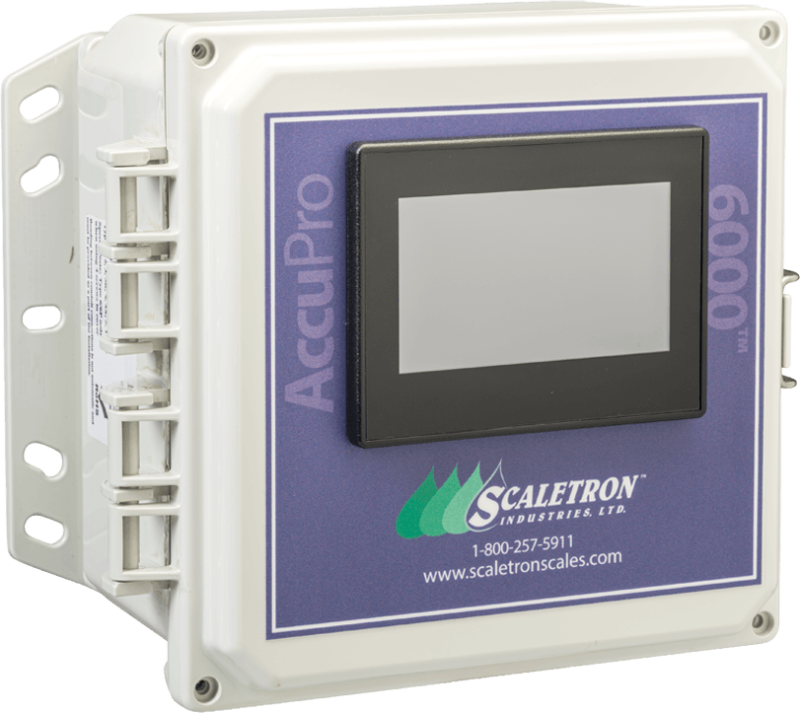

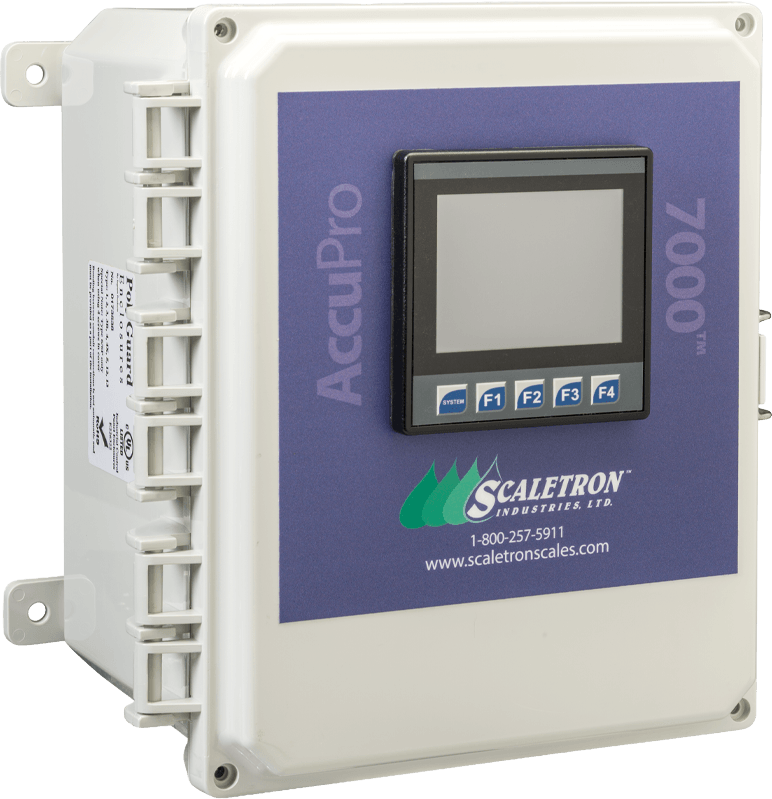

Part Number	AccuPro 5000-EK	AccuPro 5000-PB	AccuPro 6000-TS	AccuPro 7000-TS
Description	Digital Scale Controller and Measurement System	Digital Scale Controller and Measurement System	Digital Scale Controller and Measurement System	Digital Scale Controller and Measurement System
Interface	Encoder knob push/turn control	Keypad with three (3) push buttons	Touch screen	Touch screen
Accuracy	±0.1% to ±0.25% of full scale capacity	±0.1% to ±0.25% of full scale capacity	±0.1% to ±0.25% of full scale capacity	±0.1% to ±0.25% of full scale capacity
Display	2 Line x 16 character alphanumeric/graphic backlit LCD with 6 digits for weight	2 Line x 16 character alphanumeric/graphic backlit LCD with 6 digits for weight	4.3" Alphanumeric/graphic color LCD touch screen display with adjustable brightness	4.3" Alphanumeric/graphic color LCD touch screen display with adjustable brightness
Display Items	Displays net weight plus bar graph with net weight, gross weight and tare adjustment	Displays net weight plus bar graph with net weight, gross weight and tare adjustment	Displays net and gross weight; net and gross percent (%); net and gross weight bar graphs plus mA out, tare adjustment and set point values	Displays net and gross weight; net and gross percent (%); net and gross weight bar graphs; mA out, tare adjustment and set point values; on-screen and memory-stored historical data log, feed rate, daily usage, current amount used and days till empty; batch net weight, batch and total amount and time to complete
Display Screens	One (1) single-channel and one (1) dual-channel weight display	One (1) single-channel and one (1) dual-channel weight display	Up to eleven (11) single-channel and five (5) dual-channel weight displays	Up to eleven (11) single-channel and nine (9) multi-channel weight displays
Display Units	Pounds, kilograms, gallons or liters	Pounds, kilograms, gallons or liters	Pounds, kilograms, gallons or liters	Pounds, kilograms, gallons or liters
Channels	1 or 2 - One scale base per channel	1 or 2 - One scale base per channel	1 or 2 - One scale base per channel	Up to 4 - One scale base per channel
Output Signal	4-20mA Standard, 0-5V or 0-10V optional – 1 Output per channel, selectable as scale or loop powered	4-20mA Standard, 0-5V or 0-10V optional – 1 Output per channel, scale or loop powered	4-20mA Standard – 1 Output per channel, scale powered	4-20mA Optional – 1 Output per channel, scale powered
Set Points	2 or 4 Relay contacts optional per channel (high or low) - dry contact 3A relay with N.O and N.C connection	2 or 4 Relay contacts optional per channel (high or low) - dry contact 3A relay with N.O and N.C connection	2 or 4 Relay contacts optional per channel (high or low) - dry contact 3A relay with N.O and N.C connection	2 or 4 Relay contacts optional per channel (high or low), maximum 8 total - dry contact 3A relay with N.O and N.C connection
Remote Option	Can be remotely mounted up to 200 feet from base frame	Can be remotely mounted up to 200 feet from base frame	Can be remotely mounted up to 200 feet from base frame	Can be remotely mounted up to 200 feet from base frame
Audible Alarm	78 dB internal piezo buzzer alarm with adjustable volume, external buzzer support	78 dB internal piezo buzzer alarm with adjustable volume, external buzzer support	Optional 78 dB internal piezo buzzer, external buzzer support	Optional 78 dB internal piezo buzzer, external buzzer support
Communication Option			Remote monitoring with either Modbus TCP through ethernet or Modbus RTU via RS-232/RS-485 serial network	Remote monitoring with either Modbus TCP through ethernet or Modbus RTU via RS-232/RS-485 serial network
Power	90/240 VAC, 50/60 Hz, 0.10/0.05A	90/240 VAC, 50/60 Hz, 0.10/0.05A	100/277 VAC, 50/60 Hz, 0.10/0.05A	100/277 VAC, 50/60 Hz, 0.10/0.05A
Enclosure	NEMA 4X, UL approved wall mount enclosure	NEMA 4X, UL approved wall mount enclosure	NEMA 4X, UL approved enclosure	NEMA 4X, UL approved wall mount enclosure
Weight	7 lbs.	7 lbs.	7 lbs.	7 lbs.
