Model 2330™ Mechanical Dual Cylinder Scale Specifications

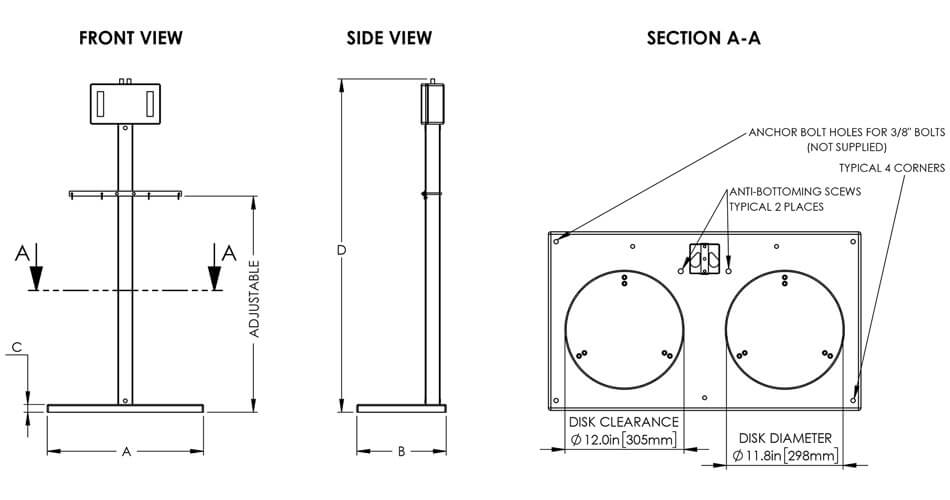

Model 2330 Dimension Drawing

Scale Base

Part Number 2330
Platform Length (A) 31.5" (800 mm)
Platform Width (B) 18.0" (457 mm)
Platform Height (C) 1.50" (38 mm)
D 67.2" (1707 mm)
Net Capacity Up to 150 lbs. (70 kg) per disk
Weight 58 lbs.

Digital Controllers

Part Number
Description
