Scaletron™ Sets The Standard
In Corrosion Resistance™
In Corrosion Resistance™

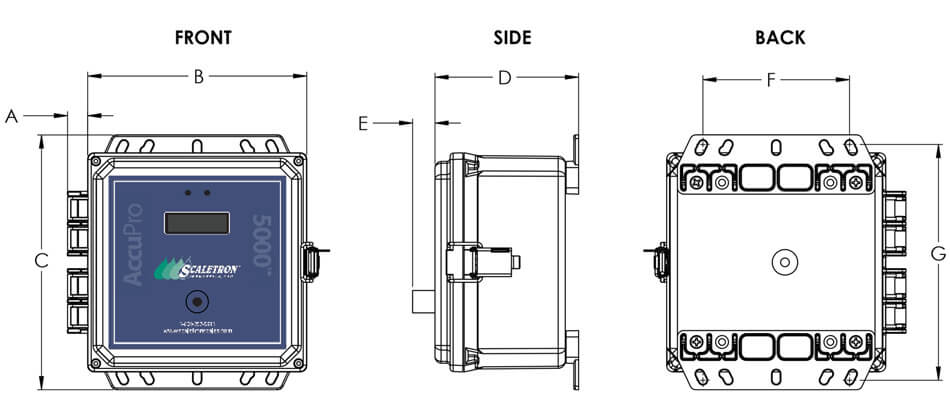

| Part Number | AccuPro 5000-EK |
|---|---|
| A | .79" (20 mm) |
| B | 8.59" (218 mm) |
| C | 9.99" (254 mm) |
| D | 5.63" (143 mm) |
| E | .88" (22 mm) |
| F | 5.75" (146 mm) |
| G | 9.25" (235 mm) |
| Interface | Encoder knob push/turn control |
| Accuracy | ±0.1% to ±0.25% of full scale capacity |
| Display | 2 Line x 16 character alphanumeric/graphic backlit LCD with 6 digits for weight |
| Display Items | Displays net weight plus bar graph with net weight, gross weight and tare adjustment |
| Display Screens | One (1) single-channel and one (1) dual-channel weight display |
| Display Units | Pounds, kilograms, gallons or liters |
| Channels | 1 or 2 - One scale base per channel |
| Output Signal | 4-20mA Standard, 0-5V or 0-10V optional – 1 Output per channel, selectable as scale or loop powered |
| Set Points | 2 or 4 Relay contacts optional per channel (high or low) - dry contact 3A relay with N.O and N.C connection |
| Remote Option | Can be remotely mounted up to 200 feet from base frame |
| Audible Alarm | 78 dB internal piezo buzzer alarm with adjustable volume, external buzzer support |
| Power | 90/240 VAC, 50/60 Hz, 0.10/0.05A |
| Enclosure | NEMA 4X, UL approved wall mount enclosure |
| Weight | 7 lbs. |
