Advanced Digital Scale Controller with Up to 4 Channels Offers Touch Screen Input

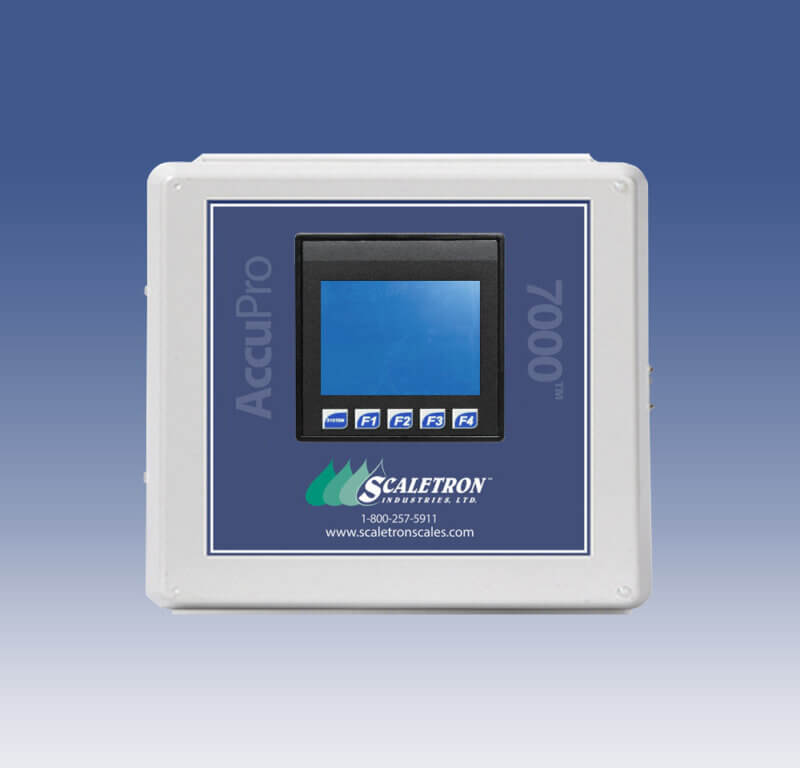

The Model AccuPro 7000-TS Digital Scale Controller and Measurement System is designed for use with Scaletron’s complete line of cylinder, ton cylinder, drum, tank, platform, IBC tote and spill containment scale bases. Featuring an easy to read 4.3″ alphanumeric/graphic color LCD touch screen display and a new simplified menu system, the controller provides an excellent accuracy of ±0.1% to ±0.25% of full scale capacity and will display net weight or gross weight in pounds, kilograms, gallons or liters. Controller is available with up to four (4) channels with optional 4-20 mA outputs. The 4-20mA output (scale powered) is scalable to a user defined value, and is adjustable. Options include high and low set point relay contacts and an audible alarm. The 7000 series allows the user to easily adjust any setting on the spot including adjusting the tare value or selecting a unit directly from any weight display. The user may apply the indicator to filling applications, as well as loading applications.
Standard Features

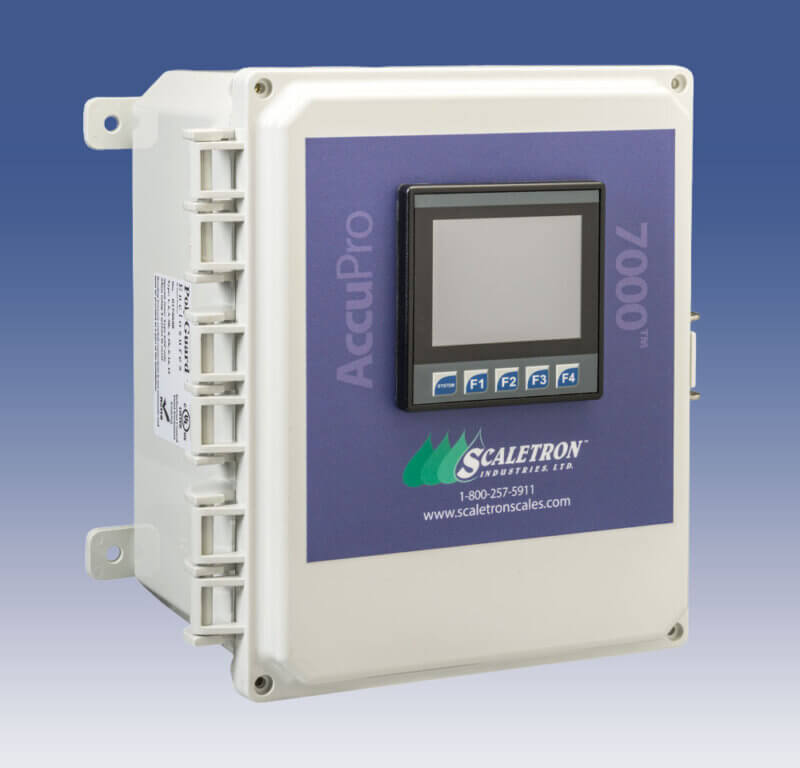

- Electronic indicator housed in NEMA 4X, UL approved wall mount enclosure to provide protection from acids
- One (1) to four (4) channel operation
- Touch screen input interface
- Displays net and gross weight; net and gross percent (%); net and gross weight bar graphs; mA out, tare adjustment and set point values; on-screen and memory-stored historical data log, feed rate, daily usage, current amount used and days till empty
- Batch control process that displays net weight, set batch amount, total amount and time to complete
- Up to eleven (11) single-channel and nine (9) multi-channel weight displays
- Leak detector input
- Compatibility with all Scaletron scales
- Ability to mix different scale types on one controller
- Simplified menu system for ease of operation
- Status check menu for errors, alarms, set points, and load cell(s) check function to ensure stable operation
- Password protection
- Field programmable and calibratable including factory restore setting
- 6 Foot power cord
Options
- 4-20 mA analog output for each channel – net weight or feed rate
- High and low level set point relay contacts – 2 or 4 per channel, maximum 8 total
- Alarm active, weight set point active and max net weight relays
- Audible alert/alarm with external buzzer support
- Remote mounting of indicator box up to 200 feet (61 meters) away from scale base
- Remote monitoring capabilities with either Modbus TCP through ethernet or Modbus RTU via RS-232/RS-485 serial network
Display Screens
The 7000-TS features an easy to read color LCD touch screen indicator with up to eleven (11) single-channel and nine (9) multi-channel weight displays
