High Capacity Weighing Solution for Applications Requiring Frequent On/Off Loading of IBC Totes and Carboys

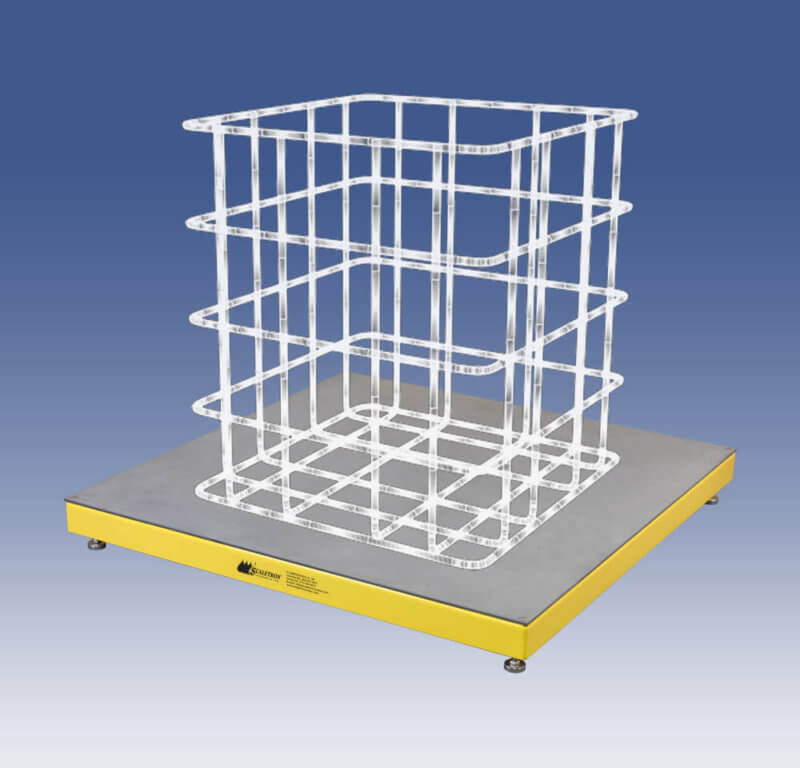

The Model 4040 IBC Tote Bin Scale is designed for weighing tote bins and carboys up to 72″x72″ and offers a net capacity of up to 10,000 lbs. Featuring corrosion resistant construction and a four (4) load cell design, the scale base is ideal for high capacity applications requiring frequent on/off loading of containers. Indicators are available from 1 to 4 channels with 4-20 mA outputs and optional set point relays. MADE IN USA.
Standard Features
- Rugged steel construction protected by a corrosion resistant, zinc oxide primed and dry powder epoxy coated finish, with solid 1/4″ PVC decking for use in harsh environments
- Low profile platform (3.75″ to 5.44″) design increases safety and ease of container handling
- Accommodates off-center loads – containers can be placed anywhere on the scale platform and still obtain an accurate reading
- All hardware is stainless steel to prevent corrosion
- Four (4) NTEP approved stainless steel shear beam, temperature compensated load cells
- Electronic indicator housed in NEMA 4X, UL approved enclosure to provide protection from acids
- 20 ft. of 4 conductor wire cable
Available Controllers
- AccuPro 5000 Digital Controller with one or 2 channels, encoder knob or 3 button keypad, audible alarm and 4-20 mA output signal – scale or loop powered
- AccuPro 6000 Digital Controller with one or 2 channels, touch screen, audible alarm and 4-20 mA output signal – scale powered
Options
- High and low level set points
- 0-5V or 0-10V output signal
- Remote mounting of indicator box up to 200 feet (61 meters) away – includes junction box and additional length of 4 conductor wire cable
- Seismic hold down brackets
- Stainless steel, ball-bearing bolt down feet (4)
Chemicals
Scale is designed to accurately measure weight of:
- Alum, ammonia, caustic, fluoride, phosphate, polymers, sodium aluminate, sodium bisulfate, sodium hydroxide, sodium hypochlorite and other liquids or powders
